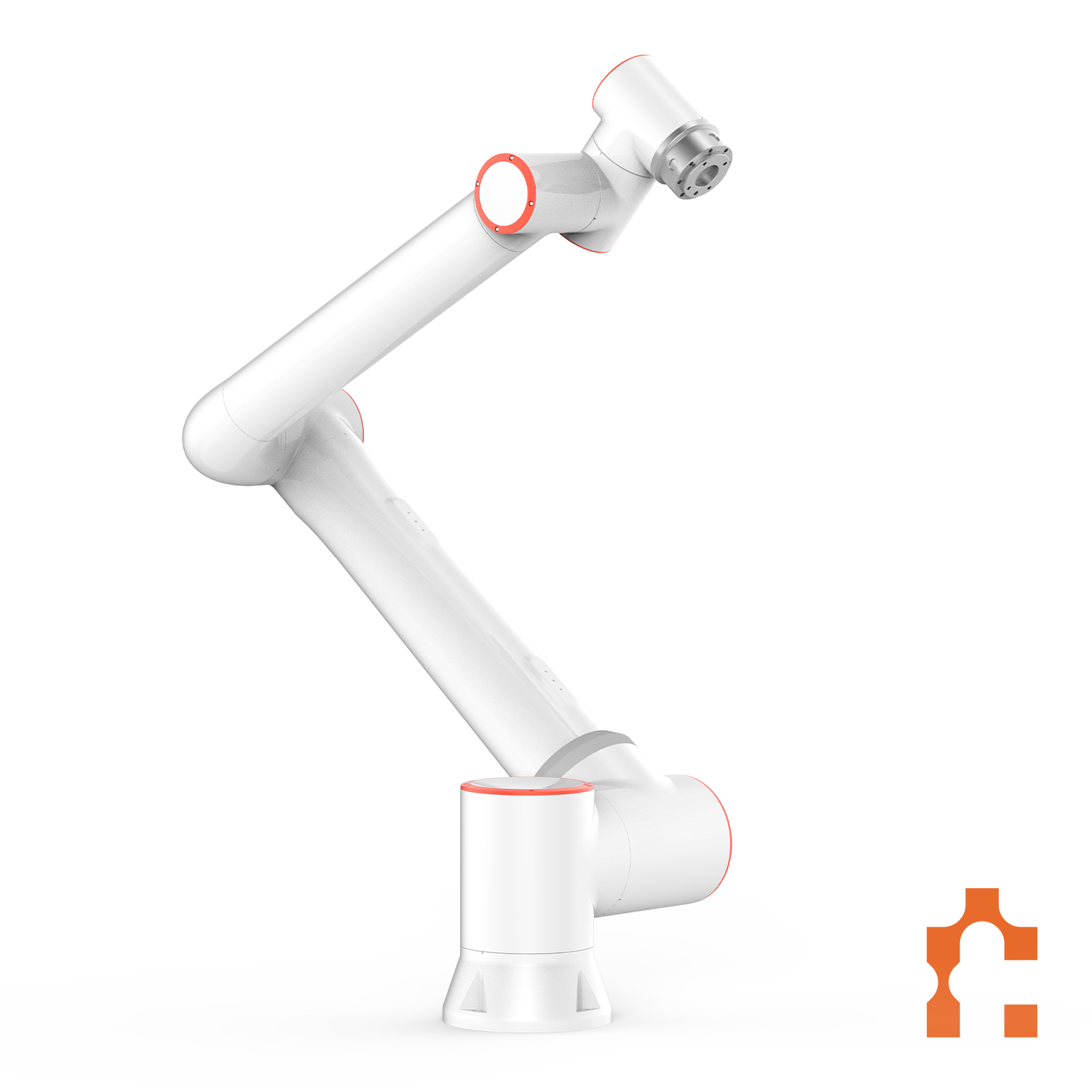

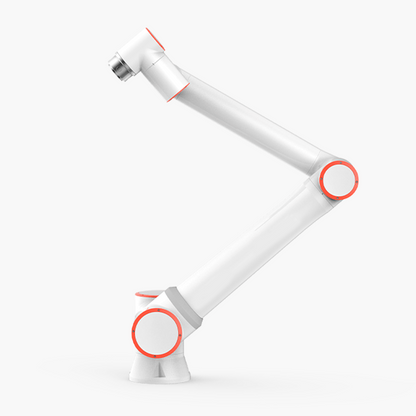

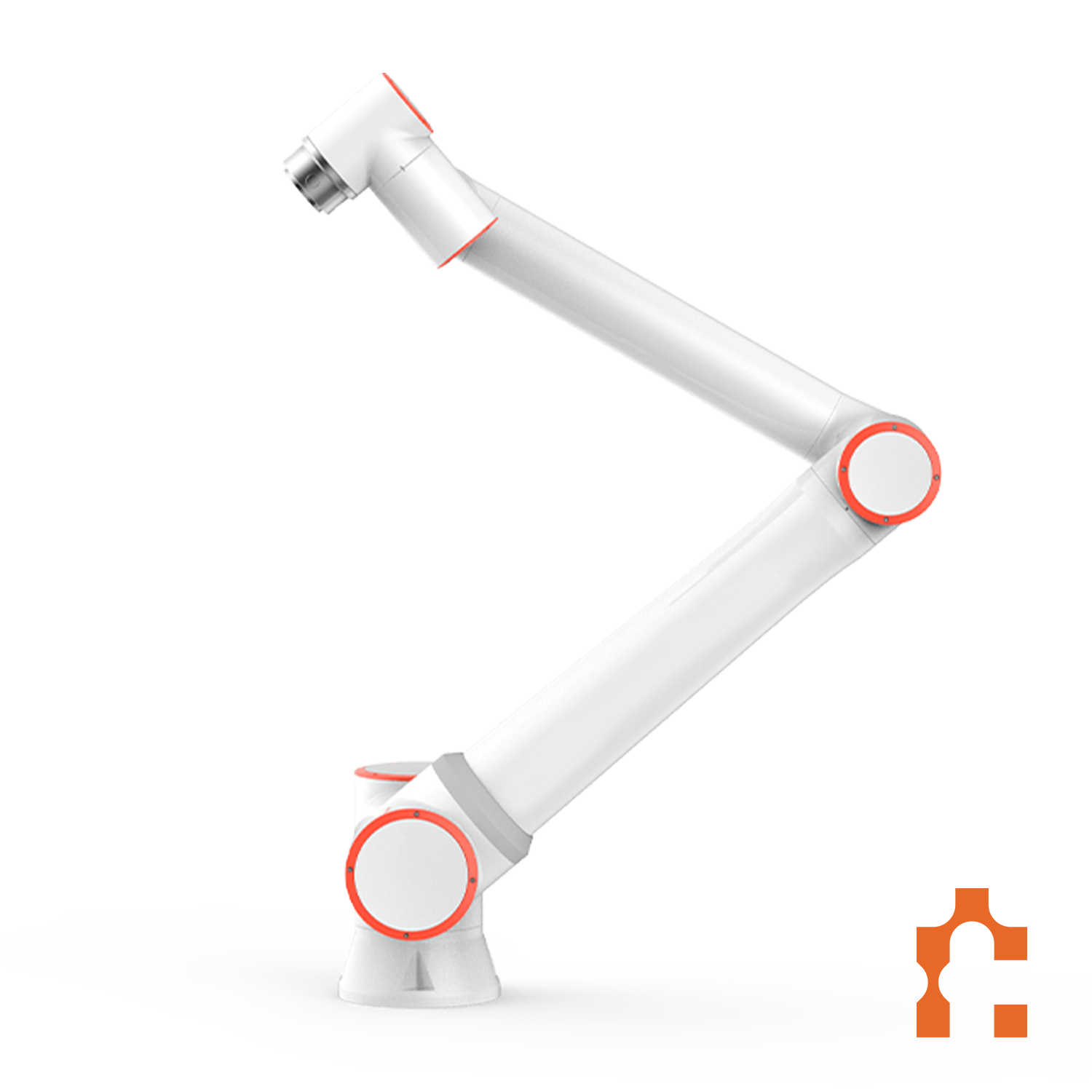

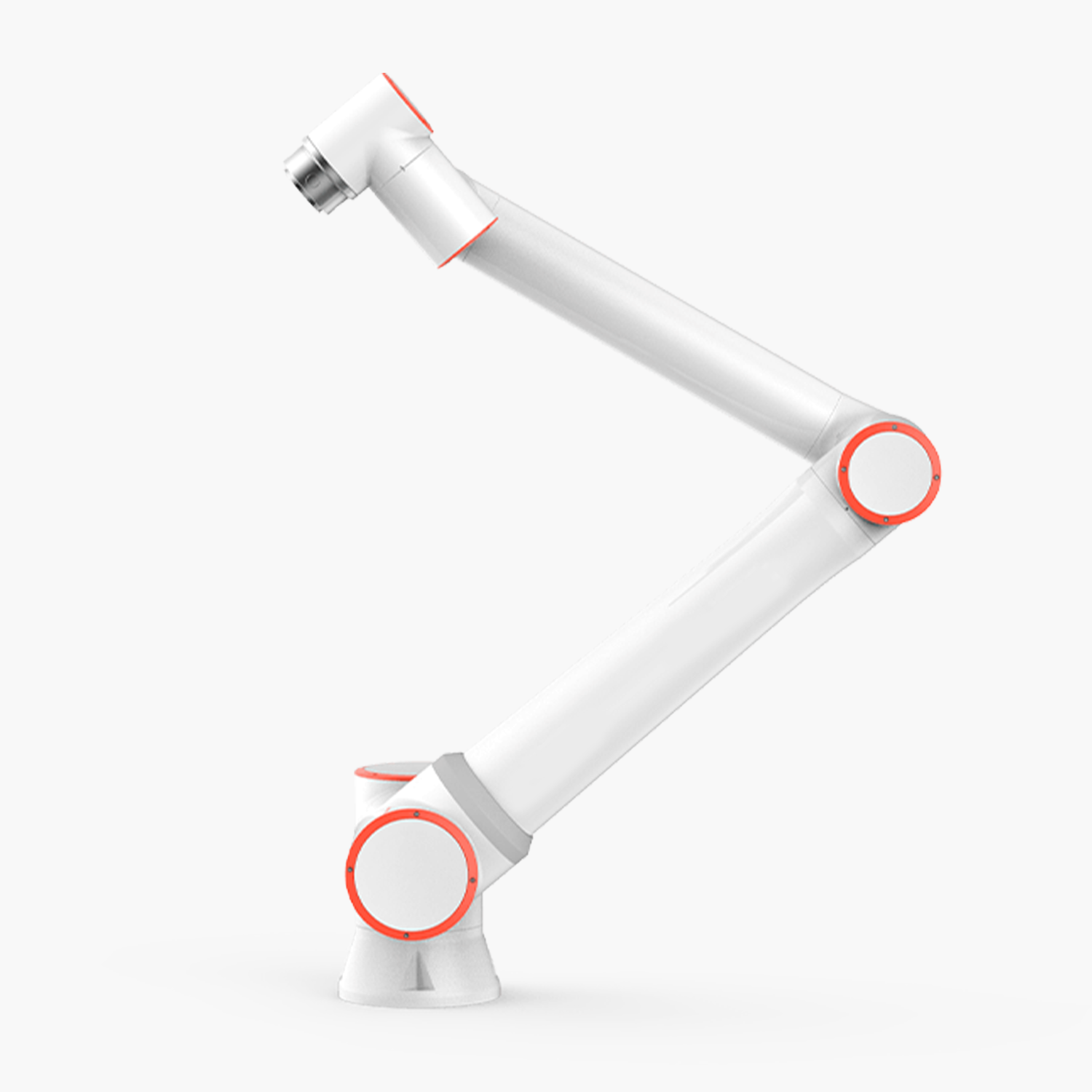

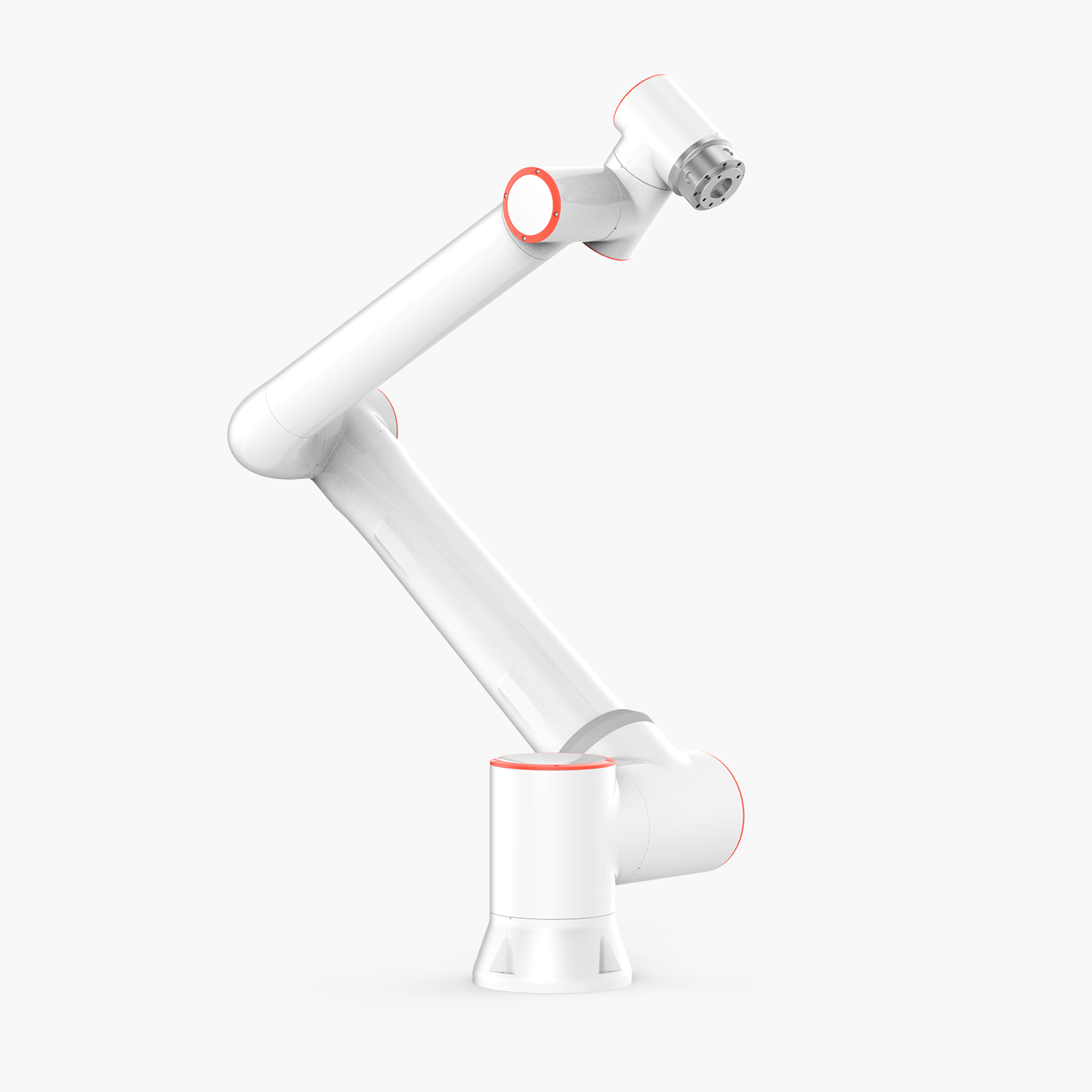

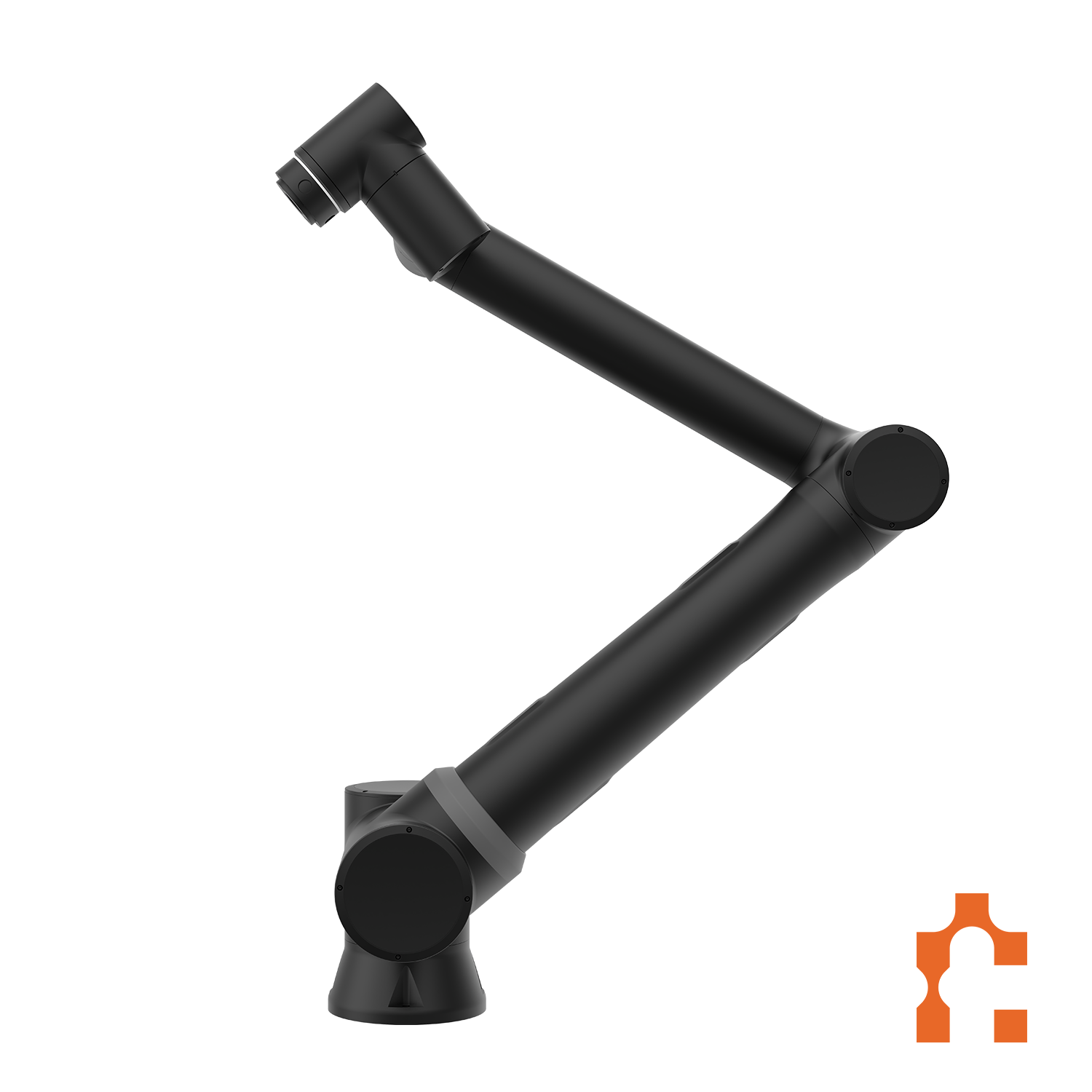

The FAIRINO FR10 is a powerful 6-axis collaborative robot arm (cobot), designed for flexibility and ease of use. What makes this cobot special is its affordability, offering the same performance as competitors at a much lower price. The FR10 can be easily programmed via an intuitive web interface without coding for quick setup, or with advanced programming languages such as Python, C#, and C++ for more complex tasks. This makes the FR10 suitable for a wide range of applications, from assembly to welding. Would you like to integrate the FR10 into a complete solution? We can assist with that—contact us to discuss the possibilities.
Order: You can place your order directly through our website or submit a request via the contact details on our contact page.
Prices exclude VAT: 0% VAT for companies in the EU, excluding the Netherlands, intra-community delivery.
Delivery time: The delivery time depends on the item. If the item is in stock, it will be shipped within 1 to 2 business days.
Specifications: Payload: 10 kg (14 kg max) Reach: 1400 mm Accuracy: ±0.05 mm Degrees of Freedom: 6 Maximum Angular Speed: 180°/s Maximum TCP Speed: 1.5 m/s IP Classification: IP54/IP65 Noise: <65dB I/O Ports - On Controller (DI, DO, AI, AO): 16, 16, 2, 2 I/O Ports - On Cobot Head (DI, DO, AI, AO): 2, 2, 1, 1 Communication: I/O, TCP/IP, Modbus TCP/RTU, Profinet, Ethernet/IP, CC-Link, EtherCAT (coming soon) Footprint: 190 mm Weight: 40 kg Average Power Consumption: 300W Peak Power Consumption: 500W Operating Temperature: 0-45 degrees Operating Humidity: 90% RH Materials: Aluminum, Steel
Robot Main Cable Length: 4m (11m extension available) Safety Box Cable Length: 5m AC Cable Length: 4m
Included: - Fairino FR10 Cobot - Control Box - Safety Box - EU Power Cable
